145 - MiTo   1.4 16v TJet   STRIPPING INSTRUMENT PANEL SUPPORTING CROSSMEMBER   7205A74

Detail     Detail

Enlarge the image


 Removing ( Refitting )

The operation should be carried out with the under-dashboard crossmember removed.

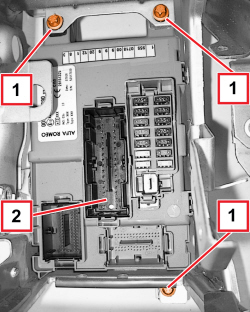

1. Unscrew the bolts.

2. Remove the body computer.

Enlarge the image

1. Unscrew the bolt.

2. Remove the mounting.

Enlarge the image

1. Unscrew the bolts.

2. Remove the passenger Air Bag module brackets.

3. Keep the under-dashboard crossmember.
Refitting ( Removing )

- Check that the under-dashboard crossmember is not damaged.

- Position the passenger Air Bag module brackets.

- Screw in the bolts.

- Position the support.

- Screw in the bolt.

- Position the body computer.

- Screw in the bolts.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image


 Removing ( Refitting )

The operation should be carried out with the under-dashboard crossmember removed.

1. Unscrew the bolts.

2. Remove the body computer.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

1. Unscrew the bolt.

2. Remove the mounting.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

1. Unscrew the bolts.

2. Remove the passenger Air Bag module brackets.

3. Recover the under-dashboard crossmember.

APPLIES TO VERSIONS WITH: Right-hand drive

Refitting ( Removing )

- Check that the crossmember from under the dashboard is not damaged.

- Position the passenger Air Bag module brackets.

- Screw in the bolts.

- Position the support.

- Screw in the nut.

- Position the body computer.

- Screw in the bolts.
