145 - MiTo   1.4 16v TJet   R.R. FRONT SIDE DOOR   7210E36

Detail     Detail

Enlarge the image

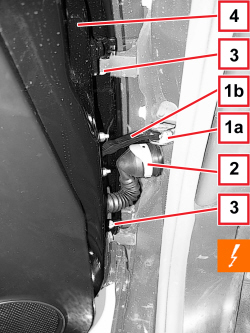

 Removing ( Refitting )

- Lower the front window to the end of travel position.

1. Undo the bolt (1a) securing the check strap (1b) to the body, then close the door temporarily to return the check strap.

2. Detach the electrical connection.





Description



Connector



2



DRIVER'S FRONT DOOR JOIN



   See D030 LEFT FRONT DOOR COUPLING



2



PASSENGER FRONT DOOR JOIN



   See D031 RIGHT FRONT DOOR COUPLING

3. Undo the bolts for the hinges.

4. With the help of another person, lift the door and remove it.

Enlarge the image


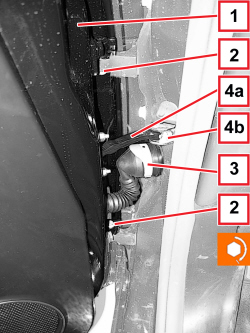

 Refitting ( Removing )

- Check that the door is not damaged.

1. With the help of another person, arranged the door on the hinges.

2. Tighten the bolts for the hinges to the recommended torque.



Component



Fastening



Ø



Value (daNm)



Validity



Moving hinges on fixed



Screw



M6



1.2 ÷ 1.8



3. Connect the electrical connection.



Component



Fixing



dia



Value (daNm)



Validity



Moving hinges on fixed



Screw



M6



1.2 ÷ 1.8



4. Pull out the limiter (4a) and tighten the bolt (4b) to the recommended torque.



Component



Fixing



dia



Value (daNm)



Validity



Door check strap (body side)



Screw



M8



2.25 ÷ 2.75



- Check that the various consumers on the door are working.

- Check the door alignment and, if necessary, carry out:

    Op. 7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT

- Check the window closing alignment and, if necessary, carry out:

    Op. 7005D11 LOWERING WINDOW (ONE), LH OR RH, FOR FRONT SIDE DOOR - CHECK SLIDING - INCLUDES ARRANGING GUIDES, POSITIONING AND FASTENING WINDOW SUPPORT TO CONTROL
