Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
  |

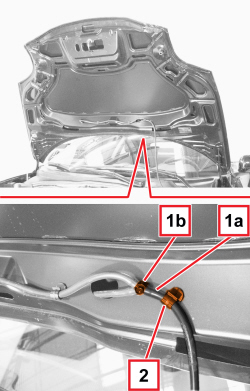

1. Disconnect the windscreen washer pipe (1a) from the three-way connector (1b). 2. Disconnect the retainer for the screen washer fluid pipe. |
  |

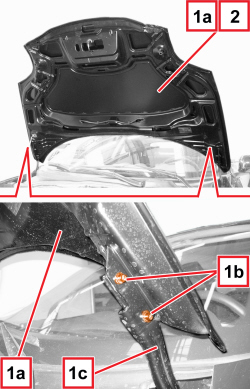

1. With the help of a second operator, suitably support the bonnet lid (1a) and, working on both sides of the vehicle, loosen the screws (1b) for hinge fastening. 2. Remove the engine bonnet lid. |
|
|
Refitting
(
Removing
)
- Check that the engine bonnet is not damaged. - Position the engine bonnet lid and screw in the hinge fixing screws (without tightening them). - Connect the screen washer fluid pipe to the three-way connector. - Connect the retainer for the screen washer fluid pipe. |
|
|
