Refitting

- Position the vehicle on a lift.

    Op. 7055B54 PROTECTION/GUARD UNDER ENGINE -R.R.

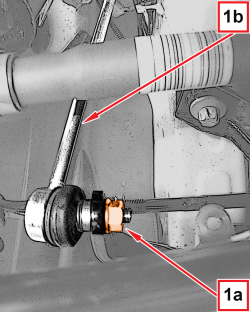

1. Undo the nut (1a) and disconnect the right anti-roll bar joint (1b).

- Carry out the same operations to disconnect the left anti-roll bar joint.

1. Undo the bolts fixing the steering box to the front suspension crossmember.

2. Undo the bolts securing the anti-roll bar to the front suspension crossmember via the openings illustrated.

- Position a suitable hydraulic lift under the front suspension crossmember.

1. Undo the bolts securing the front suspension crossmember to the body.

1. Lower the front suspension crossmember as necessary to remove the anti-roll bar.

Removing

- Place the anti-roll bar back in its housing.

1. Using the hydraulic lift, place the front suspension crossmember in its housing and tighten the bolts to the recommended torque.

1. Tighten the bolts securing the steering box to the front suspension crossmember to the specified torque.

2. Tighten the bolts securing the anti-roll bar to the front suspension crossmember to the recommended torque via the openings illustrated.

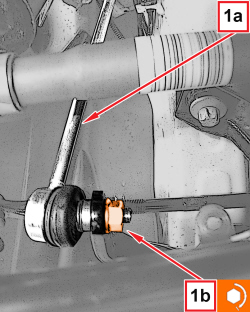

1. Connect the right anti-roll bar joint (1a) and tighten the nut (1b) to the recommended torque.

- Carry out the same operations to connect the left anti-roll bar joint.

    Op. 5540C42 SENSOR FOR CORRECTING/ALIGNING GAS DISCHARGE LIGHT CLUSTERS ON FRONT SUSPENSION - R.R.

- Remove the vehicle from the lift.
