Refitting

- Place the car on a lift.

    Op. 4450B12 FRONT WHEELS (TWO) - R.R.

1. Undo the nut (1a) and disconnect the anti-roll bar joint (1b) from the right shock absorber.

- Carry out the same operations to disconnect the anti-roll bar joint from the left shock absorber.

1. Undo the nut and disconnect the connecting rod for the front sensor for correcting/aligning the light clusters.

2. Undo the screw (2a) and the bolt (2b) and remove the lower wishbone (2c).

Removing

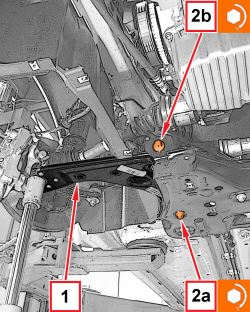

1. Place the lower wishbone in its housing, keeping it in a horizontal position using a column lift.

2. Tighten the new bolt (2a) and the new screw (2b) fixing the lower wishbone to the front suspension crossmember to the prescribed torque.

- Remove the column lift.

1. Connect the lower wishbone (1a) to the steering knuckle and tighten the new bolt (1b) to the prescribed torque.

- Connect the connecting rod for the front sensor for correcting/aligning the light clusters to the wishbone and tighten the nut.

1. Connect the anti-roll bar joint (1a) to the right shock absorber and tighten the new nut (1b) to the prescribed torque.

- Proceed in the same way to connect the anti-roll bar joint to the left shock absorber.

    Op. 7055B54 PROTECTION/GUARD UNDER ENGINE -R.R.

- Remove the car from the lift.
