Removing
(
Refitting
)
- Disconnect the negative battery terminal.
|
Name |
Connector | |
|
- |
BATTERY |
|
|
Removing
(
Refitting
)
- Disconnect the negative battery terminal.
|
|
  |
1. Disconnect the electrical connection for the video camera.
|
  |

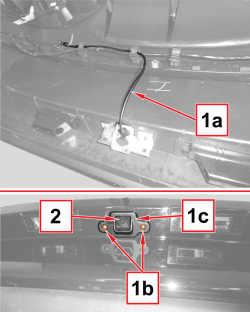

1. Slide the video camera wiring (1a) out of the bands, undo the fixing screws (1b) for the bezel (1c) and remove it. 2. Remove the video camera with the mount. |
  |
1. Unscrew the fixing screws (1a) and remove the video camera (1b) from the mount. |
|
|
Refitting
(
Removing
)
- Check that the component is intact and working, otherwise replace it. - Fit the video camera in position on the mount and tighten the fixing screws. Fit the video camera in the rear bumper, insert the bezel and tighten the fixing screws. - Insert the video camera wiring into the band and connect the electrical connection for the video camera.
|
|
|
|
- Connect the negative battery wire terminal.
|
