145 - MiTo   1.4 16v TJet   LPG FILTER - R.R.   1057B60

Detail     Detail
Removing ( Refitting )

- Drain the sections of pipe from the pressure regulator to the LPG injectors, following the procedure and the instructions below

   Op. 1043A02 LPG SYSTEM LINES PIPE DRAINING OPERATIONS

- Return the car to the workshop (in petrol operation mode).

    Op. 5530B10 BATTERY - R+R

    Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R


Enlarge the image

1. Undo the fixing nut and release the LPG filter retaining rubber band.

2. Loosen the bands (2a) and remove the LPG filter (2b).

Enlarge the image

1. Loosen the band and disconnect the connecting pipe for pressure regulator - filter to LPG filter.
Refitting ( Removing )

- Install the connecting pipe for pressure regulator - LPG filter and tighten the band, on LPG filter side.

The LPG filter must be fitted so that the arrow printed on it (indicating the flow of LPG) faces the LPG injector unit.

- Place the LPG filter in its housing, connect the pipes and tighten the bands.

Maintain a distance of 3 - 5 mm between the bands and the ends of the pipe.

- Tighten the fixing nut for the LPG filter retaining rubber band to the prescribed torque.



Component



Fixing



dia



Value (daNm)



Validity


LPG filter



Nut



M8



0.9 รท 1.2



1.4 16V TJet 120 HP

    Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

    Op. 5530B10 BATTERY - R+R

    Op. 1043A04 GPL SYSTEM AND PIPES CHECK FOR LEAKS

APPLIES TO VERSIONS WITH: Euro 5

Removing ( Refitting )

- Drain the section of pipe from the pressure regulator to the LPG injectors, following the procedure and the instructions given.

   Op. 1043A02 LPG SYSTEM LINES PIPE DRAINING OPERATIONS

APPLIES TO VERSIONS WITH: Euro 5

- Return the car to the workshop (in petrol operation mode).

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image

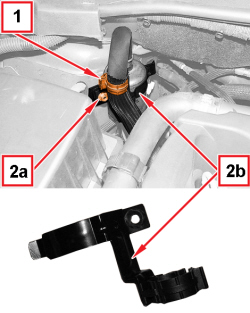

1. Open the retaining clip for the LPG injector unit inlet pipe.

2. Undo the nut (2a) and remove the LPG filter fixing collar (2b).

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image

1. Open the pipe fixing bands (1a) and remove the LPG filter (1b).

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


 Refitting ( Removing )

The LPG filter must be fitted so that the arrow printed on it (a), indicating the flow of LPG, faces the LPG injector unit.

1. Place the LPG filter (1a) back in its housing and tighten the pipe fixing bands (1b).

Maintain a distance of 3 - 5 mm between the bands and the ends of the pipe.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image

1. Place the LPG filter fixing collar (1a) back in its housing and tighten the nut (1b).

2. Close the retaining clip for the LPG injector unit inlet pipe.

APPLIES TO VERSIONS WITH: Euro 5

    Op. 1043A04 GPL SYSTEM AND PIPES CHECK FOR LEAKS

APPLIES TO VERSIONS WITH: Euro 6

Removing ( Refitting )

- Drain the section of pipe from the pressure regulator to the LPG injectors, following the procedure and the instructions given.

   Op. 1043A02 LPG SYSTEM LINES PIPE DRAINING OPERATIONS

APPLIES TO VERSIONS WITH: Euro 6

- Return the car to the workshop (in petrol operation mode).

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image

1. Open the retaining clip for the LPG injector unit inlet pipe.

2. Undo the nut (2a) and remove the LPG filter fixing collar (2b).

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image

1. Open the pipe fixing bands (1a) and remove the LPG filter (1b).

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


 Refitting ( Removing )

The LPG filter must be fitted so that the arrow printed on it (a), indicating the flow of LPG, faces the LPG injector unit.

1. Place the LPG filter (1a) back in its housing and tighten the pipe fixing bands (1b).

Maintain a distance of 3 - 5 mm between the bands and the ends of the pipes.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image

1. Place the LPG filter fixing collar (1a) back in its housing and tighten the nut (1b).

2. Close the retaining clip for the LPG injector unit inlet pipe.

APPLIES TO VERSIONS WITH: Euro 6

    Op. 1043A04 GPL SYSTEM AND PIPES CHECK FOR LEAKS
