145 - MiTo   1.4 16v TJet   FILLER PIPE FROM FITTING TO GPL TANK R R   1043A34

Detail     Detail

Removing ( Refitting )

- Drain the LPG tank charge filler pipe, complying with the prescriptions and following the procedure

   Op. 1043A02 LPG SYSTEM LINES PIPE DRAINING OPERATIONS

- Return the vehicle to the workshop (in petrol operation mode) and place it on a lift.

- Disconnect the negative battery terminal.

    Op. 1043A13 LPG TANK COVER - R.R.

    Op. 1043A17 LPG INTAKE SOLENOID VALVE COIL - R.R.


Enlarge the image


1. Disconnect the electrical connection for the LPG level sensor and move the wiring aside.





Description



Connector



1



LPG level sensor



   See K033 GPL LEVEL SENSOR

2. Unscrew the connector for the filling pipe from filler to LPG tank, tank side.

    Op. 4450B08 RIGHT REAR WHEEL - R.R

    Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

    Op. 1043E10 LPG PIPE LOWER GUARD - R.R.

    Op. 1043A30 GPL FILLER FITTING R R

- Mark the position of the filler pipe retaining bands from filler to LPG tank in the area under the spare wheel compartment.


Enlarge the image

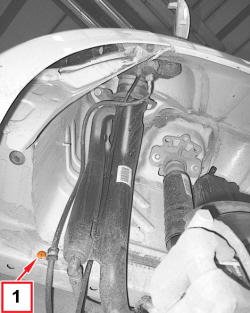

1. Remove the rivet and the filling pipe from filler to LPG tank.

Refitting ( Removing )

- Measure the length of the two sections of the removed pipe, on tank and filler side.

- Obtain a new filling pipe from filler to LPG tank (diameter 8 mm).

- Cut two sections of pipe with the previously measured length.


Enlarge the image


1. Remove the protection sheath from the two ends, for about 50 mm, then fit the connector (1a) and the nose (1b).


Enlarge the image

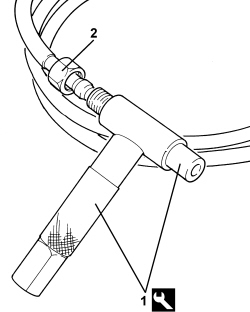

1. Insert the filling pipe from filler to LPG tank into the tool, until the end of travel.



Tool



Name



Function



Validity



2000033700



Connector



Nose locking for LPG pipe connector



1.4 16v TJet 120 HP

2. Screw the connector onto the tool to lock the nose on the filling pipe from filler to LPG tank.

- This operation must be made on the two ends of the new pipe, tank side.

For a correct locking of the nose, approach it manually then, with a suitable spanner, make a further 2-3 complete turns of the connector on the tool.


Enlarge the image


Check that the nose is 2 mm from the end of the filler pipe from filler to LPG tank.

- Work in the same way to connect a single end of the pipe section, filler side.


Enlarge the image


1. Fit the end of the filling pipe from filler to LPG tank, tank side, in the pipe bushing in the tank compartment, apply a drop of lubricating oil on the threading of the connector and tighten to the prescribed torque.



2. Connect the electrical connection for the LPG level sensor and move the wiring aside.





Description



Connector



2



LPG level sensor



   See K033 GPL LEVEL SENSOR


Enlarge the image


1. Manually shape the filling pipe from filler on the LPG tank, filler side, using the same references as the removed pipe and fit the upper end on the filler side.

Pay attention not to create obstructions in the pipe.

    Op. 1043A30 GPL FILLER FITTING R R


Enlarge the image


1. Engage the filling pipe from filler to LPG tank to the body, using a new collar riveted in the position shown in the figure.

- Working underneath the car, connect the lower end of the filler pipe from filler to LPG tank, tank side.


Enlarge the image


1. Join the two pipe connectors (1a) and (1b) with the new female connector (1c), manually tighten the first threads of the female connector and tighten to the prescribed torque of 1.5 daNm.


Enlarge the image


1. Engage the filling pipe from filler to LPG tank (1a) with the bands (1b) positioned as shown in the picture.

2. Protect the filling pipe from filler to LPG tank with a rubber cylinder, securing it with a clamp in the position shown in the figure.

    Op. 1043E10 LPG PIPE LOWER GUARD - R.R.

    Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

    Op. 4450B08 RIGHT REAR WHEEL - R.R

    Op. 1043A17 LPG INTAKE SOLENOID VALVE COIL - R.R.

    Op. 1043A13 LPG TANK COVER - R.R.

- Connect the negative battery terminal.

- Remove the vehicle from the lift.

    Op. 1043A04 GPL SYSTEM AND PIPES CHECK FOR LEAKS

APPLIES TO VERSIONS WITH: Euro 5

Removing ( Refitting )

- Drain the LPG tank charge filler pipe, complying with the prescriptions and following the procedure

   Op. 1043A02 LPG SYSTEM LINES PIPE DRAINING OPERATIONS

APPLIES TO VERSIONS WITH: Euro 5

- Return the vehicle to the workshop (in petrol operation mode) and place it on a lift.

APPLIES TO VERSIONS WITH: Euro 5

    Op. 4450B08 RIGHT REAR WHEEL - R.R

    Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

    Op. 1043E10 LPG PIPE LOWER GUARD - R.R.

    Op. 1043A30 GPL FILLER FITTING R R

APPLIES TO VERSIONS WITH: Euro 5, Euro 6


Enlarge the image


1. Mark the position and cut the multifunction solenoid valve wiring and LPG pipe retaining bands.

2. Unscrew the connector for the filling pipe from filler to LPG tank, tank side.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


1. Remove the rivet and the filling pipe from filler to LPG tank.

APPLIES TO VERSIONS WITH: Euro 5

Refitting ( Removing )

- Obtain a new filler pipe from filler to LPG tank (diameter 8 mm) the same length as the pipe which was removed.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


- Proceed as described below for both ends.

1. Remove 50 mm of protective sheath, then insert the connector (1a) and the nose (1b).

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


1. Insert the filling pipe from filler to LPG tank into the tool, until the end of travel.



Tool



Name



Function



Validity



2000033700



Connector



Nose locking for LPG pipe connector



1.4 16v TJet 120 HP

2. Screw the connector onto the tool to lock the nose on the filling pipe from filler to LPG tank.

APPLIES TO VERSIONS WITH: Euro 5

For a correct locking of the nose, tighten it manually then, with a suitable spanner, make a further 2-3 complete turns of the connector on the tool.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


Check that the nose is 2 mm from the end of the filler pipe from filler to LPG tank.

APPLIES TO VERSIONS WITH: Euro 5

- Manually shape the filler pipe from filler to LPG tank, using the same references as for the pipe which was removed.

Pay attention not to create obstructions in the pipe.

APPLIES TO VERSIONS WITH: Euro 5, Euro 6

- Place the filler pipe from filler to LPG tank back in its housing and proceed with

    Op. 1043A30 GPL FILLER FITTING R R

APPLIES TO VERSIONS WITH: Euro 5, Euro 6


Enlarge the image


1. By a rivet, cut the rubber band in the position shown.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


1. Protect the pipe with a rubber cylinder fixed with a band in the position indicated in the figure.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


1. Protect the pipe with a rubber cylinder fixed with a band in the position indicated in the figure.

2. Tighten the connector for the filler pipe from filler to LPG tank to the prescribed torque, LPG tank side.



3. Engage the LPG pipes and the multifunction solenoid valve wiring with the bands positioned as shown in the figure.

APPLIES TO VERSIONS WITH: Euro 5

    Op. 1043E10 LPG PIPE LOWER GUARD - R.R.

    Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

    Op. 4450B08 RIGHT REAR WHEEL - R.R

APPLIES TO VERSIONS WITH: Euro 5

- Connect the negative battery terminal.

- Remove the vehicle from the lift.

APPLIES TO VERSIONS WITH: Euro 5

    Op. 1043A04 GPL SYSTEM AND PIPES CHECK FOR LEAKS

APPLIES TO VERSIONS WITH: Euro 6

Removing ( Refitting )

- Drain the LPG tank charge filler pipe, complying with the prescriptions and following the procedure

   Op. 1043A02 LPG SYSTEM LINES PIPE DRAINING OPERATIONS

APPLIES TO VERSIONS WITH: Euro 6

- Return the vehicle to the workshop (in petrol operation mode) and place it on a lift.

APPLIES TO VERSIONS WITH: Euro 6

    Op. 4450B08 RIGHT REAR WHEEL - R.R

    Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

    Op. 1043E10 LPG PIPE LOWER GUARD - R.R.

    Op. 1043A30 GPL FILLER FITTING R R

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


1. Mark the position and cut the multifunction solenoid valve wiring and LPG pipe retaining bands.

2. Unscrew the connector for the filling pipe from filler to LPG tank, tank side.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


1. Remove the rivet and the filling pipe from filler to LPG tank.

APPLIES TO VERSIONS WITH: Euro 6

Refitting ( Removing )

- Obtain a new filler pipe from filler to LPG tank (diameter 8 mm) the same length as the pipe which was removed.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


- Proceed as described below for both ends.

1. Remove 50 mm of protective sheath, then insert the connector (1a) and the nose (1b).

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


1. Insert the filling pipe from filler to LPG tank into the tool, until the end of travel.



Tool



Name



Function



Validity



2000033700



Connector



Nose locking for LPG pipe connector



1.4 16v TJet 120 HP

2. Screw the connector onto the tool to lock the nose on the filling pipe from filler to LPG tank.

APPLIES TO VERSIONS WITH: Euro 6

For a correct locking of the nose, tighten it manually then, with a suitable spanner, make a further 2-3 complete turns of the connector on the tool.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


Check that the nose is 2 mm from the end of the filler pipe from filler to LPG tank.

APPLIES TO VERSIONS WITH: Euro 6

- Manually shape the filler pipe from filler to LPG tank, using the same references as for the pipe which was removed.

Pay attention not to create obstructions in the pipe.

APPLIES TO VERSIONS WITH: Euro 6

- Place the filler pipe from filler to LPG tank back in its housing and proceed with

    Op. 1043A30 GPL FILLER FITTING R R

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


1. By a rivet, cut the rubber band in the position shown.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


1. Protect the pipe with a rubber cylinder fixed with a band in the position indicated in the figure.

2. Tighten the connector for the filler pipe from filler to LPG tank to the prescribed torque, LPG tank side.



3. Engage the LPG pipes and the multifunction solenoid valve wiring with the bands positioned as shown in the figure.

APPLIES TO VERSIONS WITH: Euro 6

    Op. 1043E10 LPG PIPE LOWER GUARD - R.R.

    Op. 7055B45 RIGHT REAR WHEEL ARCH LINER - R.R

    Op. 4450B08 RIGHT REAR WHEEL - R.R

APPLIES TO VERSIONS WITH: Euro 6

- Connect the negative battery terminal.

- Remove the car from the lift.

APPLIES TO VERSIONS WITH: Euro 6

    Op. 1043A04 GPL SYSTEM AND PIPES CHECK FOR LEAKS
