145 - MiTo   1.4 16v TJet   FRONT CONTROL PANEL ON ROOF LINING - R.R.   7040H92

Detail     Detail

Enlarge the image


 Removing ( Refitting )

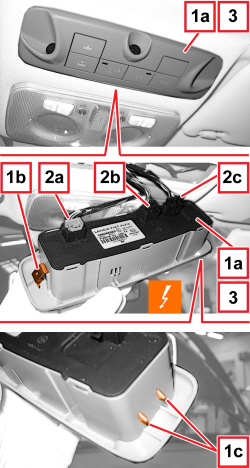

1. Slightly move the button panel (1a) with the appropriate, tool releasing the flexible retainer (1b) and the rigid retainers (1c).



Tool



Name



Function



Validity



1823014000



Knife



Retainer removal



2. Disconnect the electrical connections (2a, 2b, 2c) for the control panel.





Description



Connector



2a



SUN ROOF SWITCH



   See H060 SUN ROOF SWITCH



2b



VOLUMETRIC SENSOR UNIT FOR ALARM



   See K062 ALARM VOLUMETRIC SENSORS ASSEMBLY



2c



NAVIGATION CONTROLS



   See H135 NAVIGATION CONTROLS

3. Keep the control panel.
Refitting ( Removing )

- Check that the control panel is not damaged.

- Connect the electrical connections for the control panel.

- Position the control panel and attach the retainers.
