145 - MiTo   1.4 16v TJet   SPEAKER GRILLE FRAME ON FRONT DOOR PANEL (ONE), LH OR RH - R.R.   7005E23

Detail     Detail
Removing ( Refitting )

   Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.

- Or, alternatively.

   Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R.

   Op. 7040E24 LOWER COURTESY LIGHT IN DOOR PANEL - R+R

   Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL - R.R.


Enlarge the image

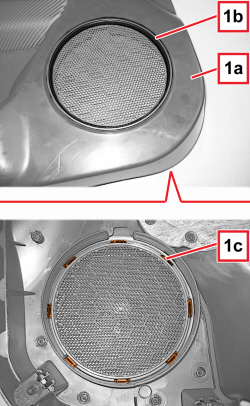

1. Working on the door panel (1a), remove the frame (1b) of the speaker grille, releasing the inner retainers (1c).
Refitting ( Removing )

- Check that the grille frame is not damaged.

- Place the frame in position on the speaker grille and attach the inner retainers.

   Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL - R.R.

   Op. 7040E24 LOWER COURTESY LIGHT IN DOOR PANEL - R+R

   Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R.

- Or, alternatively.

   Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.
