145 - MiTo   1.4 16v TJet   FRONT CHANNEL/SEAL FOR FRONT SIDE DOOR LOWERING WINDOW GLASS (ONE), LEFT OR RIGHT - R.R.   7005D29

Detail     Detail
Removing ( Refitting )

- Lower the window to the end of travel position.

   Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.

- Or, alternatively.

   Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R.

   Op. 7040E24 LOWER COURTESY LIGHT IN DOOR PANEL - R+R

   Op. 7005E12 CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R.

   Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL - R.R.

   Op. 7005R30 ELECTRICALLY CONTROLLED DOOR MIRROR (ONE) - R+R


Enlarge the image

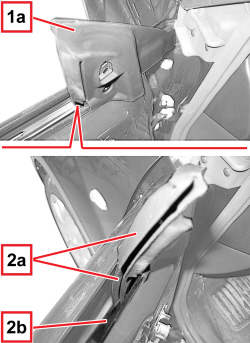

1. Release the upper part (1a) of the channel from the seat.

2. Lift up the channel (2a) and extract it releasing it from the door frame guide and from the descending window (2b).
Refitting ( Removing )

- Check that the channel is not damaged.

- Check that the window is lowered to the end of travel position.

- Fit the channel in position.

   Op. 7005R30 ELECTRICALLY CONTROLLED DOOR MIRROR (ONE) - R+R

   Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL - R.R.

   Op. 7005E12 CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R.

   Op. 7040E24 LOWER COURTESY LIGHT IN DOOR PANEL - R+R

   Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R.

   Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.

- Move the window to check that it slides correctly on the channel.
