145 - MiTo   1.4 16v TJet   PARKING SENSOR SYSTEM REAR SENSORS - R.R. WITH REAR BUMPER REMOVED   5580H36

Detail     Detail

Enlarge the image


 Removing ( Refitting )

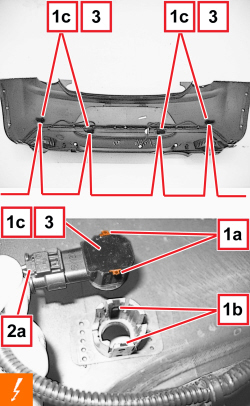

1. Release the retainers (1a) from the seats (1b) and extract the sensor (1c) involved.

2. Disconnect the electrical connection (2a) for the sensor (1c) concerned.





Description



Connector



2a



PARKING SENSOR UNIT



   See K097 PARKING SENSORS

3. Keep the sensor.
Refitting ( Removing )

- Check that the sensor is not damaged.

- Connect the electrical connection for the sensor.

- Place the sensor in position and attach the retainers.
