Refitting

1. Remove the gasket from the air conditioning casing.

1. Remove the foam rubber seal.

1. Unscrew the bolt.

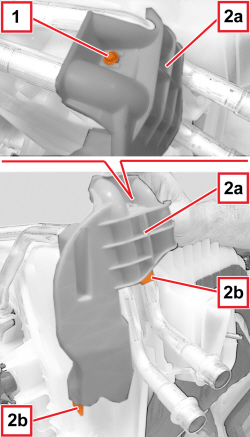

2. Remove the pipe guard (2a) releasing the retainers (2b).

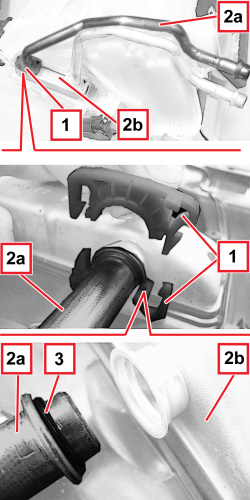

1. Release the half-collar fastening the supply pipe to the radiator and remove it.

2. Remove the supply pipe (2a) releasing it from the heater radiator (2b) and from the air conditioning casing.

3. Keep the gasket for the pipe on the radiator.

The seal must be replaced during refitting.

Removing

- Check that the supply pipe is not damaged.

- Replace the gasket for the pipe on the heater radiator.

- Position the supply pipe and attach it to the heater radiator.

- Position the pipe guard and attach the retainers.

- Screw in the bolt.

- Position the foam rubber seal.

- Position the seal.
