Refitting

   Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

   Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R

1. Using a screwdriver, release the retainer (1a) and remove the toothed sector (1b).

Removing

- Check that the toothed sector is not damaged.

- Renew the grease on the teeth and the moving parts of the gear train.

Use special grease for plastic.

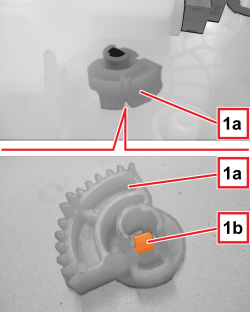

1. Place the toothed sector (1a) in the compulsory position, then attach the retainer (1b).

    Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R

    Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

    Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

    Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

    Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

- Check that the dismantled parts are working.

Refitting

   Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

- Follow the safety regulations.

   Op. 5580C AIR BAG SYSTEM

   Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

   Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R

1. Using a screwdriver, release the retainer (1a) and remove the toothed sector (1b).

Removing

- Check that the toothed sector is not damaged.

- Renew the grease on the teeth and the moving parts of the gear train.

Use special grease for plastic.

1. Place the toothed sector (1a) in the compulsory position, then attach the retainer (1b).

    Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R

    Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

    Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

    Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

- Check that the dismantled parts are working.
