Refitting

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

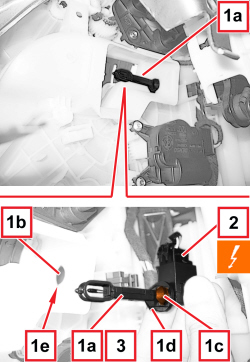

1. Working in the glove compartment housing, extract the sensor (1a) from the seat (1b) releasing the retainers (1c) and the tab (1d) from the seat (1e).

2. Disconnect the electrical connection for the sensor.

3. Keep the sensor.

Removing

- Check that the sensor is not damaged.

- Working in the glove compartment housing, connect the electrical connection for the sensor.

- Fit the sensor and attach the retainers and the tab in place.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

Refitting

- Straighten the front wheels, engage the first steering lock towards the right and remove the ignition key.

- Keep the steering column adjustment lever closed during all the removing-refitting stages.

Avoid the upper shaft slipping out during the removal of the electrically controlled steering when it is removed from its housing.

- Comply with the safety regulations when removing for the Air Bag module.

   Op. 5580C18 AIR BAG MODULE - R+R

   Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

   Op. 7040A26 STEERING COLUMN TRIM - R+R

   Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

   Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

   Op. 5550A10 STALK UNIT ASSEMBLY - R+R

   Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

   Op. 5580E08 AERIAL FOR ELECTRONIC KEY (CODE) - R.R.

   Op. 4110D20 STEERING ELECTRICAL CONTROL DEVICE - R R

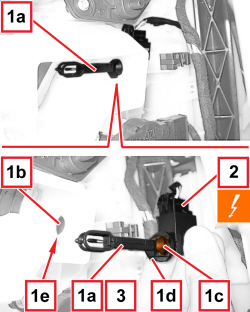

1. Working on the right side of the air conditioning casing, take out the sensor (1a) from the housing (1b) releasing the retainers (1c) and the position tab (1d) from the housing (1e).

2. Disconnect the electrical connection for the sensor.

3. Keep the sensor.

Removing

- Check that the sensor is not damaged.

- Working on the right side of the air conditioning casing, connect the electrical connection for the sensor.

- Fit the sensor and attach the retainers and the tab in place.

   Op. 4110D20 STEERING ELECTRICAL CONTROL DEVICE - R R

   Op. 5580E08 AERIAL FOR ELECTRONIC KEY (CODE) - R.R.

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

   Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

   Op. 5550A10 STALK UNIT ASSEMBLY - R+R

   Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

   Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

   Op. 7040A26 STEERING COLUMN TRIM - R+R

   Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

   Op. 5580C18 AIR BAG MODULE - R+R
