Refitting

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

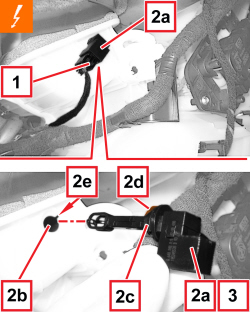

1. Working in the glove compartment housing, disconnect the electrical connection for the sensor.

2. Extract the sensor (2a) from the seat (2b) releasing the retainers (2c) and the position tab (2d) from the seat (2e).

3. Keep the sensor.

Removing

- Check that the sensor is not damaged.

- Working in the glove compartment housing, connect the electrical connection for the sensor.

- Fit the sensor and attach the retainers and the tab in place.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

Refitting

   Op. 7040A43 HARNESS COVER (ONE – ANY) UNDER DASHBOARD - R.R.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

   Op. 7040G24 SWITCH FOR FACIA COMPARTMENT LIGHT - R+R

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

- Follow the safety instructions for the following procedure.

   Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

- Remove the lower air vents:

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

   Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

   Op. 7040A88 R R HANDLE FOR FRONT SEAT FORE AND AFT ADJUSTMENT

   Op. 5580C18 AIR BAG MODULE - R+R

   Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

   Op. 7040A26 STEERING COLUMN TRIM - R+R

   Op. 5550A10 STALK UNIT ASSEMBLY - R+R

   Op. 5560B10 CONTROL PANEL - R+R

   Op. 5580E08 AERIAL FOR ELECTRONIC KEY (CODE) - R.R.

   Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

   Op. 5570T80 CAR RADIO EQUIPMENT - R+R

- Remove the central vents.

   Op. 5010C31 CENTRE AIR VENT IN DASHBOARD (ONE) LEFT OR RIGHT - R.R.

   Op. 7040A85 INSTRUMENT PANEL CENTRE FRAME - R.R.

   Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.

   Op. 5570T50 BLUETOOTH ELECTRONIC CONTROL UNIT MOUNTING - R.R.

   Op. 5010D56 SOLAR SENSOR - R.R. FOLLOWING ELECTRICAL SYSTEM CHECK

- Remove both front pillar trims.

   Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

   Op. 5040D15 CONTROL UNIT WITH KNOBS AND BUTTONS FOR DUAL ZONE AIR CONDITIONER - R.R.

   Op. 7040A10 DASHBOARD TRIM - R+R

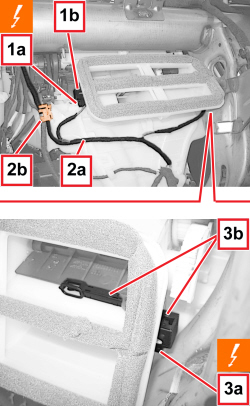

1. Disconnect the electrical connection (1a) for the upper left air temperature sensor (1b).

2. Disconnect the wiring branch (2a) from the retainer (2b).

3. Disconnect the electrical connection (3a) for the upper right air temperature sensor (3b).

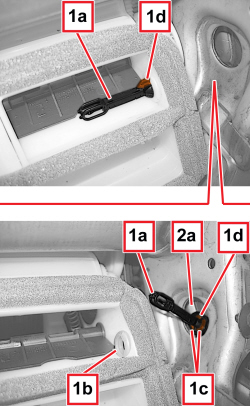

1. Extract the right sensor (1a) from its housing (1b) releasing the side retainers (1c) and the position tab (1d) from the housing.

2. Insert the right sensor (1a) into the hole (2a) (in order to tilt and then recover it).

1. Recover the right sensor extracting it in the direction of the arrow.

Removing

- Check that the right sensor is not damaged.

- Place the right sensor in position performing the removal operation in reverse.

Engage the retainers and the position tab in their housings.

- Connect the electrical connection for the right sensor.

- Connect the wiring branch to the retainer.

- Connect the electrical connection for the left sensor.

   Op. 7040A10 DASHBOARD TRIM - R+R

   Op. 5040D15 CONTROL UNIT WITH KNOBS AND BUTTONS FOR DUAL ZONE AIR CONDITIONER - R.R.

- As an alternative, fit the air conditioning control mounting as follows: tighten the upper and lower fixing screws for the control mounting, then position the cover and engage the retainers.

   Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

   Op. 5010D56 SOLAR SENSOR - R.R. FOLLOWING ELECTRICAL SYSTEM CHECK

   Op. 5570T50 BLUETOOTH ELECTRONIC CONTROL UNIT MOUNTING - R.R.

   Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.

   Op. 7040A85 INSTRUMENT PANEL CENTRE FRAME - R.R.

   Op. 5010C31 CENTRE AIR VENT IN DASHBOARD (ONE) LEFT OR RIGHT - R.R.

   Op. 5570T80 CAR RADIO EQUIPMENT - R+R

   Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

   Op. 5580E08 AERIAL FOR ELECTRONIC KEY (CODE) - R.R.

   Op. 5560B10 CONTROL PANEL - R+R

   Op. 5550A10 STALK UNIT ASSEMBLY - R+R

   Op. 7040A26 STEERING COLUMN TRIM - R+R

   Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

   Op. 5580C18 AIR BAG MODULE - R+R

   Op. 7040A88 R R HANDLE FOR FRONT SEAT FORE AND AFT ADJUSTMENT

   Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

   Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

   Op. 7040G24 SWITCH FOR FACIA COMPARTMENT LIGHT - R+R

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

   Op. 7040A43 HARNESS COVER (ONE – ANY) UNDER DASHBOARD - R.R.

- Check that the dismantled parts are working.
