Refitting

   Op. 5570T91 FRONT SIDE SPEAKER (ONE), LEFT OR RIGHT - R.R. WITH DOOR PANEL REMOVED

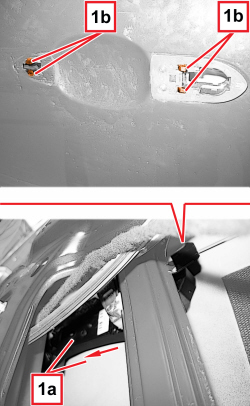

1. Working from inside the door, move the support (1a) for the exterior handle back, releasing the outer retainers (1b) from the door frame.

1. Move the handle support (1a) and extract it from the door frame, then disconnect the retainer (1b) and then the end (1c) of the rod (1d).

2. Keep the handle support.

Removing

- Check that the handle support is not damaged.

- Connect the end of the rod and the retainer to the handle support.

- Place the handle support in position and engage the outer retainers.

   Op. 7005C11 FRONT SIDE DOOR EXTERIOR HANDLE - R.R
