Refitting

- Open the bonnet.

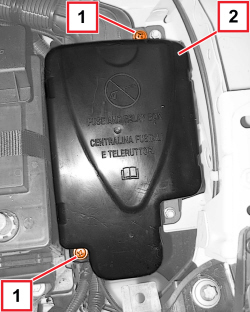

1. Unscrew the bolts.

2. Remove the cover for the junction unit container.

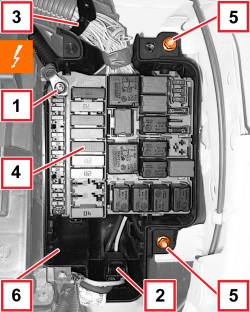

1. Undo the nut and disconnect the electrical connection from the junction unit.

2. Release the electrical connection from the junction unit container seat.

3. Cut the wiring retaining band.

4. Raise the junction unit slightly releasing the retainers.

5. Undo the container retaining nuts.

6. Remove the junction unit container.

Removing

- Check that the junction unit container is not damaged.

- Position the junction unit container.

- Screw in the nuts.

- Position the junction unit and attach the retainers.

- Fit the wiring retaining band.

- Attache the electrical connection in the junction unit container seat.

- Connect the electrical connection to the junction unit and screw in the nut.

- Position the junction unit container cover.

- Screw in the bolts.

- Close the bonnet.
