Refitting

- Draw off the fluid from the screen washer reservoir using a syringe.

- Position the vehicle on a lift.

- Raise the vehicle.

1. Undo the front bolts (1a) securing the left front wheel arch liner (1b).

2. Release the front part (1b) of the wheel arch liner from its seat and move it aside.

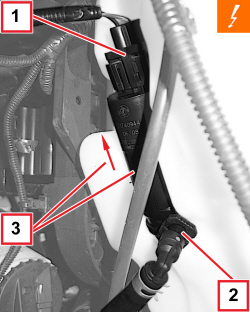

1. Detach the electrical connection.

2. Disconnect the rapid connector for the headlamp washer supply pipe.

3. Release the electric pump from its housing.

Removing

- Check that the electric pump is not damaged.

- Place the electric pump in position.

- Connect the rapid connector for the headlamp washer supply pipe.

- Connect the electrical connection.

- Place the wheel arch in position.

- Tighten the wheel arch retaining bolts.

- Remove the vehicle from the lift.

- Refill the screen washer fluid reservoir.
