Refitting

1. Lift up the wiper arm.

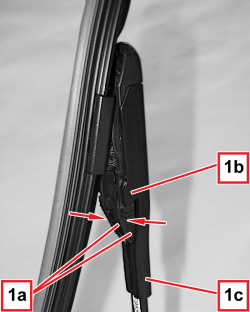

2. Press the tabs (1a) and release them from the retainers (1b) for the arm.

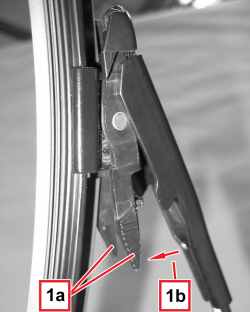

1. Extract the tabs (1a) from the arm, turning them following the arrow (1b).

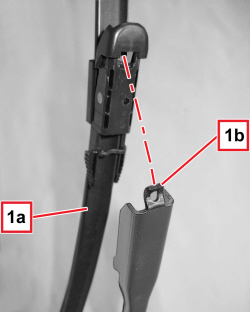

1. Extract the blade (1a), releasing it from the end retainer (1b) for the arm.

Removing

- Check that the blade is not damaged and that the rubber edge is intact.

- Fit the blade and attach it to the end retainer for the arm, then attach the tabs.

- Lower the wiper arm.

- Check that the windscreen wipers are working properly.
