 Removing
(
Refitting
)
- Position the vehicle on a lift. - Raise the vehicle. 1. Undo the front bolts (1a) securing the left front wheel arch liner (1b). 2. Release the front part (1b) of the wheel arch liner from its seat and move it aside. |
  |

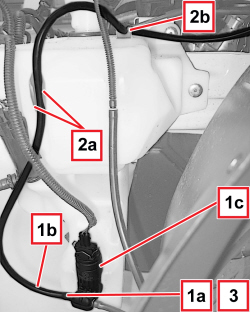

1. Disconnect the end (1a) of the screen washer pipe (1b) from the pump (1c). 2. Disconnect the pipe (1b) from the retainers (2b) and (2b) for the reservoir. 3. Fit a probe to the end (1a) of the pipe (1b). |
|
|
|
  |
1. Working on the engine compartment cover, disconnect the end (1a) of the screen washer pipe (1b) releasing it from the three-way connector (1c). 2. Extract the screen washer pipe (1b) from the top of the engine leaving the probe fitted previously in its place in the engine compartment (to be used for refitting the pipe during the refitting stage). |
|
|
Refitting
(
Removing
)
- Check that the screen washer lower pipe is not damaged. - Fit the lower screen washer pipe in the engine compartment using the probe left during the removal stage. - Working on the bonnet lid, connect the end of the screen washer pipe to the three-way connector. |
|
- Connect the screen washer pipe to the retainer. - Raise the vehicle. - Connect the screen washer pipe to the retainers for the reservoir. - Connect the end of the screen washer pipe to the pump. - Place the wheel arch in position. - Tighten the wheel arch retaining bolts. - Lower the vehicle. - Remove the vehicle from the lift. |
