- Work on the right side.

    Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

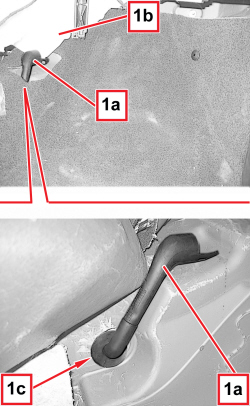

1. Check that the condensation drainage pipe (1a) is correctly connected to both the vent (1b) for the air conditioning casing and the opening (1c) in the bodyshell.

- If necessary, remove the condensation drainage pipe, working as described below.

1. Release the carpet retaining stud using the special tool.

2. Release the condensation drainage pipe (1a) from the vent (1b) for the air conditioning casing after having released the retainer (1c).

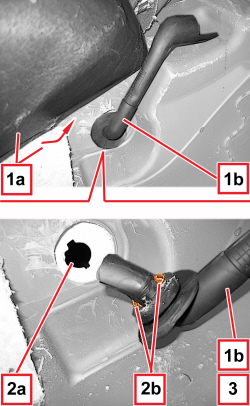

1. Lift up the front carpet (1a) slightly in the area of the condensation drainage pipe (1b).

2. Rotate the pipe (1b) and extract it from the opening (2a) in the body, releasing the retainers (2b).

3. Check the condition and cleanliness of the pipe, then refit it reversing the order of the operations carried out for the removal. Replace it, if necessary.

    Op. 7040L20 TUNNEL COVER - R.R
