145 - MiTo   1.4 16v TJet   AIR CONDITIONING COMPRESSOR MOUNTING - R.R.   5040A26

Detail     Detail
Removing ( Refitting )

Follow the recommended safety instructions (see 5040 - Introduction).

   Op. 5040 AIR CONDITIONING CASING AND COMPONENTS

   Op. 1016A10 SOUND-PROOFING COVER - R.R

- Drain the coolant.

   Op. 0010T84 AIR CONDITIONING SYSTEM REFRIGERANT - DEHYDRATING AND REPRESSURIZING

   Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

   Op. 1092G10 AUXILIARY COMPONENTS SINGLE DRIVE BELT - R.R.

   Op. 5040A20 AIR CONDITIONING COMPRESSOR - R.R. INCLUDES CHECKING FLUID LEVEL AND TOPPING UP IF NECESSARY

   Op. 5530A10 ALTERNATOR - R.R.

   Op. 1092G14 ENGINE COMPONENT SINGLE BELT MOVING TENSIONER - R + R


Enlarge the image

1. Disconnect the earth lead connection (1a) from the compressor mounting (1b).





Description



Connector


1



COMPRESSOR EARTH



   See C039 COMPRESSOR EARTH

Enlarge the image

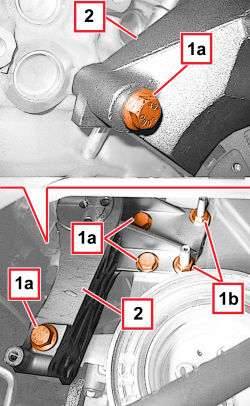

- Raise the vehicle.

1. Undo the bolts (1a) and nuts (1b).

2. Remove the compressor mounting.

Enlarge the image


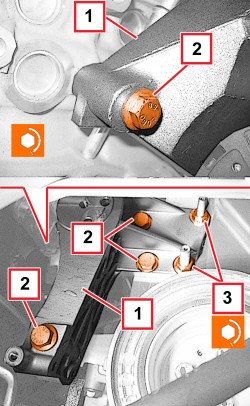

 Refitting ( Removing )

- Check that the compressor mounting is not damaged.

1. Position the compressor mounting.

2. Screw in the compressor mounting fixing bolts and tighten them to the specified torque.



Component



Fastening



Ø



Value (daNm)



Validity



Supporto compressore



Vite



M10x1.25



4.5 ÷ 5.5



1.4 16v TJet

1.4 16v

1.4 MultiAir

1.4 Turbo MultiAir

3. Tighten the compressor mounting retaining nuts.



Component



Fastening



Ø



Value (daNm)



Validity



Supporto compressore



Dado



M8x1.25



2.3 ÷ 2.7



1.4 16v TJet

1.4 16v

1.4 MultiAir

1.4 Turbo MultiAir



Component



Fastening



Ø



Value (daNm)



Validity



Supporto compressore



Dado



M10x1.25



4.5 ÷ 5.5



1.4 16v TJet

1.4 16v

1.4 MultiAir

1.4 Turbo MultiAir

- Lower the vehicle.

- Connect the earth lead connection to the compressor mounting.

    Op. 1092G14 ENGINE COMPONENT SINGLE BELT MOVING TENSIONER - R + R

    Op. 5530A10 ALTERNATOR - R.R.

    Op. 5040A20 AIR CONDITIONING COMPRESSOR - R.R. INCLUDES CHECKING FLUID LEVEL AND TOPPING UP IF NECESSARY

    Op. 1092G10 AUXILIARY COMPONENTS SINGLE DRIVE BELT - R.R.

- Repressurize the coolant.

    Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

    Op. 0010T84 AIR CONDITIONING SYSTEM REFRIGERANT - DEHYDRATING AND REPRESSURIZING

    Op. 1016A10 SOUND-PROOFING COVER - R.R

APPLIES TO VERSIONS WITH: GPL, Euro 5, Euro 6

Removing ( Refitting )

Follow the recommended safety instructions (see 5040 - Introduction).

   Op. 5040 AIR CONDITIONING CASING AND COMPONENTS

   Op. 1016A10 SOUND-PROOFING COVER - R.R

- Drain the coolant.

   Op. 0010T84 AIR CONDITIONING SYSTEM REFRIGERANT - DEHYDRATING AND REPRESSURIZING

   Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

   Op. 1057B60 LPG FILTER - R.R.

   Op. 1057B62 LPG FILTER FASTENING BRACKET - R.R.

   Op. 1092G10 AUXILIARY COMPONENTS SINGLE DRIVE BELT - R.R.

   Op. 5040A20 AIR CONDITIONING COMPRESSOR - R.R. INCLUDES CHECKING FLUID LEVEL AND TOPPING UP IF NECESSARY

   Op. 5530A10 ALTERNATOR - R.R.

   Op. 1092G14 ENGINE COMPONENT SINGLE BELT MOVING TENSIONER - R + R

APPLIES TO VERSIONS WITH: GPL, Euro 5, Euro 6


Enlarge the image

1. Disconnect earth lead connection (1a) from compressor mount (1b).





Denomination



Connector


1



COMPRESSOR EARTH



   See C039 COMPRESSOR EARTH

APPLIES TO VERSIONS WITH: GPL, Euro 5, Euro 6


Enlarge the image

- Raise the vehicle.

1. Undo the screws (1a) and nuts (1b).

2. Remove the compressor mounting.

APPLIES TO VERSIONS WITH: GPL, Euro 5, Euro 6


Enlarge the image


 Refitting ( Removing )

- Check that the compressor mounting is not damaged.

1. Position the compressor mounting.

2. Tighten the screws fixing the compressor mounting to the prescribed torque.



Component



Fastening



Ø



Value (daNm)



Validity



Supporto compressore



Vite



M10x1.25



4.5 ÷ 5.5



1.4 8v

1.4 16v TJet

1.4 16v

1.4 MultiAir

1.4 Turbo MultiAir

3. Tighten the compressor mount retaining nuts.



Component



Fastening



Ø



Value (daNm)



Validity



Supporto compressore



Dado



M8x1.25



2.3 ÷ 2.7



1.4 8v

1.4 16v TJet

1.4 16v

1.4 MultiAir

1.4 Turbo MultiAir



Component



Fastening



Ø



Value (daNm)



Validity



Supporto compressore



Dado



M10x1.25



4.5 ÷ 5.5



1.4 8v

1.4 16v TJet

1.4 16v

1.4 MultiAir

1.4 Turbo MultiAir

APPLIES TO VERSIONS WITH: GPL, Euro 5, Euro 6

- Lower the vehicle.

- Connect the earth lead connection to the compressor mount.

    Op. 1092G14 ENGINE COMPONENT SINGLE BELT MOVING TENSIONER - R + R

    Op. 5530A10 ALTERNATOR - R.R.

    Op. 5040A20 AIR CONDITIONING COMPRESSOR - R.R. INCLUDES CHECKING FLUID LEVEL AND TOPPING UP IF NECESSARY

    Op. 1092G10 AUXILIARY COMPONENTS SINGLE DRIVE BELT - R.R.

    Op. 1057B62 LPG FILTER FASTENING BRACKET - R.R.

    Op. 1057B60 LPG FILTER - R.R.

    Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

- Repressurise the coolant.

    Op. 0010T84 AIR CONDITIONING SYSTEM REFRIGERANT - DEHYDRATING AND REPRESSURIZING

    Op. 1016A10 SOUND-PROOFING COVER - R.R
