Refitting

Follow the prescribed safety instructions (see 5010 - Introduction).    Op. 5010 CLIMATE CONTROL - MISCELLANEOUS

- Drain the engine coolant.

   Op. 0010T20 ENGINE COOLANT - CHANGE

   Op. 1016A10 SOUND-PROOFING COVER - R.R

   Op. 5530B10 BATTERY - R+R

   Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

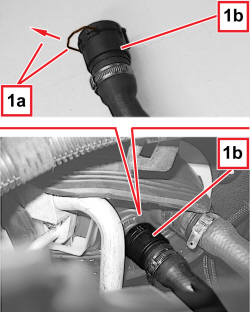

1. Release the retaining clip (1a) and disconnect the quick connector (1b) for the heater water supply pipe, heater side.

1. Working in the battery compartment, loosen the retaining band (1a) and disconnect the water supply pipe (1b) to the heater, from the engine connector.

2. Open the retaining band (2a) and disconnect the connecting pipe (2b) to the LPG pressure regulator.

3. Remove the heater water supply pipe.

Removing

- Check that the heater water supply pipe is not damaged.

- Position the pipe.

- Connect the pipe to the LPG pressure regulator pipe.

- Close the retaining band.

- Connect the pipe to the engine connector.

- Close the retaining band.

- Connect the pipe quick connector, heater side, then engage the retaining clip.

   Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

   Op. 5530B10 BATTERY - R+R

   Op. 1016A10 SOUND-PROOFING COVER - R.R

- Refill the engine cooling circuit.

   Op. 0010T20 ENGINE COOLANT - CHANGE
