Refitting

HALF-HINGE ON DOOR

   Op. 7210E36 R.R. FRONT SIDE DOOR

1. Unscrew the bolt.

2. Remove the hinge.

HALF-HINGE ON BODY

    Op. 7210E36 R.R. FRONT SIDE DOOR

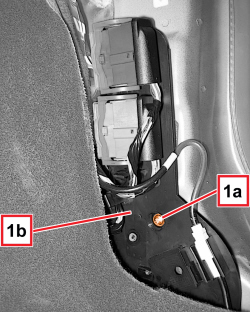

1. Undo the bolt (1a) securing the support (1b) for the electrical connections.

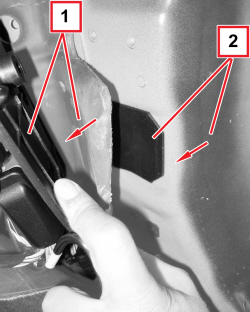

1. Move the electrical connections support.

2. Release the flexible cover and adhesive and move them to access the inner bolt securing the door lower hinge.

1. Undo the outer bolt (1a) and the inner bolt (1b) securing the half-hinge to the body.

2. Remove the half-hinge.

Removing

- Check that the hinge is not damaged.

- Position the half hinges and screw in the bolts without tightening them.

   Op. 7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT
