Removing
(
Refitting
)
- Position the vehicle on a lift.
- Raise the vehicle.

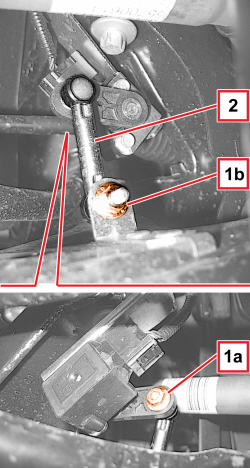

1. Working in the area of the right front suspension track control arm, undo the nuts (1a) and (1b) connecting the connecting rod.
2. Remove the connecting rod.
|
|
Removing
(
Refitting
)
- Position the vehicle on a lift. - Raise the vehicle. 1. Working in the area of the right front suspension track control arm, undo the nuts (1a) and (1b) connecting the connecting rod. 2. Remove the connecting rod. |
|
|
Refitting
(
Removing
)
- Check that the connecting rod is not damaged. - Fit the connecting rod in the housing. - Tighten the rod connection nuts. - Remove the vehicle from the lift.
|
