Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
- Or, alternatively Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R. |
|
|
Op. 7005E12 CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R. |
|
|
Op. 5570T91 FRONT SIDE SPEAKER (ONE), LEFT OR RIGHT - R.R. WITH DOOR PANEL REMOVED |
|
Op. 7005A04 FRONT SIDE DOOR WATER GUARD PROTECTION - R.R. OR ARRANGE WITH DOOR PANEL REMOVED |
|
Op. 7005D26 FRONT SIDE DOOR DESCENDING WINDOW GLASS SCRAPER (OUTER) (ONE), LEFT OR RIGHT- R.R |
|
|
  |
1. Detach the electrical connection.

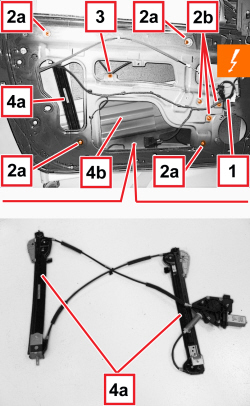

2. Undo the nuts (2a) securing the guides and the nuts (2b) securing the motor. 3. Disconnect the retainer for the window opening mechanism cables. 4. Remove the window opening mechanism (4a) extract it through the opening (4b). |
  |
Refitting
(
Removing
)

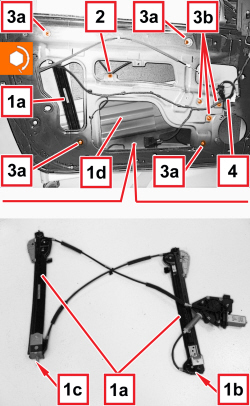

- Check that the window opening mechanism is not damaged. 1. The window raising mechanism (1a) has two adjustment points (1b) and (1c), set by the manufacturer, that must not be modified. - Insert the window winder mechanism (1a) through the opening (1d) and arrange it in its seat. 2. Connect the window winder mechanism wire retainer. 3. Screw in the nuts (3a) securing the guides and the nuts (3b) fastening the motor, then tighten them to the recommended torque.
4. Connect the electrical connection. |
|
|
|
Op. 7005D26 FRONT SIDE DOOR DESCENDING WINDOW GLASS SCRAPER (OUTER) (ONE), LEFT OR RIGHT- R.R |
|
Op. 7005A04 FRONT SIDE DOOR WATER GUARD PROTECTION - R.R. OR ARRANGE WITH DOOR PANEL REMOVED |
|
Op. 5570T91 FRONT SIDE SPEAKER (ONE), LEFT OR RIGHT - R.R. WITH DOOR PANEL REMOVED |
|
|
Op. 7005E12 CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R. |
|
|
Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R. |
|
- Or, alternatively |
|
