CHECK ON SLIDING AND POSITION OF DESCENDING WINDOW 1. Move the descending window up and down to the end of travel and check that it slides freely with no impediments. Repeat the check with the door open and closed. 2. Raise the window until it is in the end of travel position. |
  |

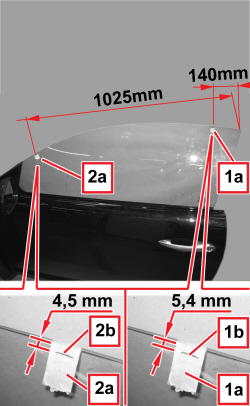

1. Apply adhesive tape to the upper edge of the window (1a), 140 mm from the rear corner as shown. Mark a line (1b) on the outer side of the adhesive tape, 5.4 mm from the upper edge of the window (sinking distance of the window in the seal). 2. Apply adhesive tape to the upper edge of the window (2a) 1025 mm from the rear corner as illustrated. Mark a line (2b) on the outer side of the adhesive tape, 4.5 mm from the upper edge of the window (sinking distance of the window in the seal). - Close the door. |
  |

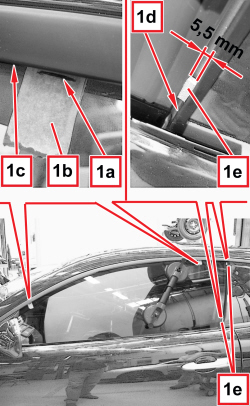

1. Check that the lines (1a) on the adhesive tape (1b) are in line with the edge (1c) of the upper seal. Check that the rear edge of the glass is at a distance of 5.5 mm from the edge (1d) of the rear seal; carry out the check in areas (1e). - If necessary, adjust the descending window as described below in the procedure below. |
|
|
DESCENDING WINDOW ADJUSTMENT Op. 7005D26 FRONT SIDE DOOR DESCENDING WINDOW GLASS SCRAPER (OUTER) (ONE), LEFT OR RIGHT- R.R |
|
  |

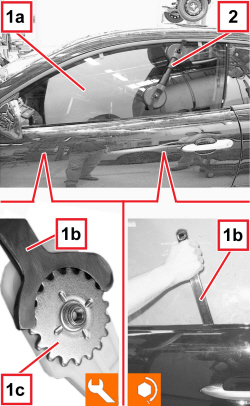

1. Working on the external side of the window (1a) and the door frame (external window scraper compartment), use the specific tool (1b) to slightly loosen the two toothed rings (1c) from the window retainers.
|
  |

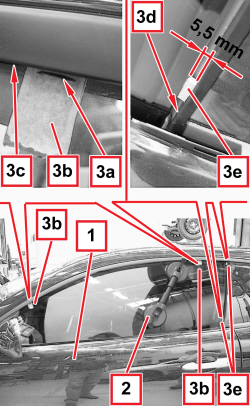

1. Close the door. 2. Apply a suction pad in the middle area of the window in order to be able to move it. 3. Move the window brining the lines (3a) for the adhesive tape (3b) in line with the edge (3c) of the upper seal and 5.5 mm from the edge (3d) of the rear seal. To facilitate the adjustment of the window, it is advisable to insert two 5.5 mm shims (3e) between the window and the rear seal edge as shown in the figure. |
  |

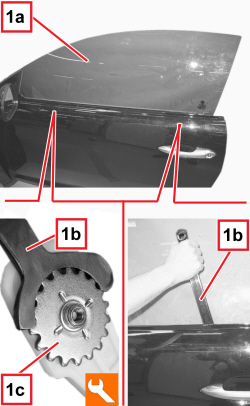

1. With the window adjusted as described above, working on the external side of the window (1a) and the door frame (external window scraper compartment), use the specific tool (1b) to tighten the two toothed rings (1c) of the window retainers at the specified torque.
2. Remove the suction pad. |
|
|
- Move the door several times and check the automatic lowering of the window when the door is being opened and its automatic raising after the door has been shut (short drop function). If necessary, carry out the initialization procedure to activate the short drop function. See descriptions 7005 PASSENGER COMPARTMENT FRONT SIDE DOORS Op. 7005D26 FRONT SIDE DOOR DESCENDING WINDOW GLASS SCRAPER (OUTER) (ONE), LEFT OR RIGHT- R.R |
|
