- Open the front door.

1. Check that the door housing seal is not damaged along its entire perimeter, otherwise replace it.

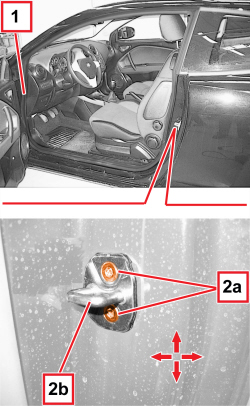

2. If necessary, loosen the bolts (2a) and move the lock striker (2b) into the correct position using the slotted bolt holes. The arrows indicate the possible movements for the adjustment.

1. Tighten the bolts to the specified torque.

- Check that the striker and the door lock are correctly matched and that the alignment is correct with the door closed.

- If necessary, adjust the window.

    Op. 7005D11 LOWERING WINDOW (ONE), LH OR RH, FOR FRONT SIDE DOOR - CHECK SLIDING - INCLUDES ARRANGING GUIDES, POSITIONING AND FASTENING WINDOW SUPPORT TO CONTROL
