Removing
(
Refitting
)
- Work on both sides.
|
|
Removing
(
Refitting
)
- Work on both sides. |
|
|
|
|
  |
1. Undo rear nuts (1a) fastening the trim (1b). |
  |

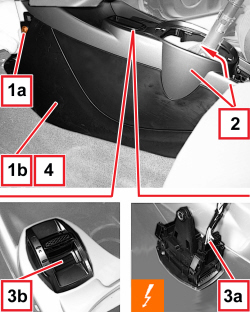

1. Working on both sides of the vehicle, undo the bolts (1a) fixing the trim (1b). 2. Carefully lift the rear side of the trim by releasing it from the from the front seats. 3. Working inside the tunnel trim, disconnect the corresponding electric connection (3a) from the selector (3b).
4. Keep the trim. |
|
|
Refitting
(
Removing
)
- Check that the trim is not damaged. - Connect the electrical connection of the selector. - Position the trim in its housing. - Tighten the nuts and the trim bolts. |
|
|
|
|
APPLIES TO VERSIONS WITH: GPL, Euro 5
|
APPLIES TO VERSIONS WITH: GPL, Euro 5
|
APPLIES TO VERSIONS WITH: GPL, Euro 5
|
APPLIES TO VERSIONS WITH: GPL, Euro 5
|
