Removing
(
Refitting
)
- Open the tailgate.

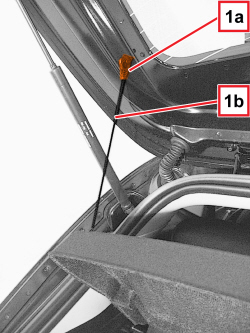

1. Working on both sides of the tailgate, release the ends (1a) of the tie-rods (1b) from the parcel shelf.
|
|
Removing
(
Refitting
)
- Open the tailgate. 1. Working on both sides of the tailgate, release the ends (1a) of the tie-rods (1b) from the parcel shelf. |
  |
1. Working on both sides, release the parcel shelf (1a) from the retainers (1b) and them remove it. |
|
|
Refitting
(
Removing
)
- Check that the rear parcel shelf is not damaged. - Fit the parcel shelf in place and attach to the side retainers. - Engage the ends of the parcel shelf tie-rods to the tailgate. - Close the tailgate. |
