145 - MiTo   1.4 16v TJet   RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.   7040H67

Detail     Detail

Enlarge the image


 Removing ( Refitting )

- Lift up the rear seat cushion.

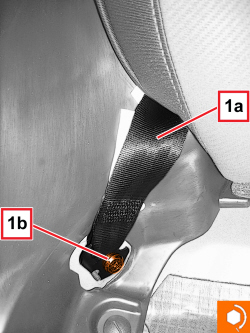

1. Undo the bolt (1a) securing the end of the side rear seat belt (1b).

    Op. 7040H80 REAR PARCEL SHELF - R.R.

- Lower the rear seat backrest.

Enlarge the image

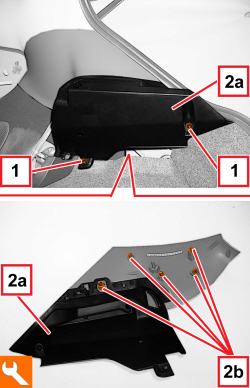

1. Unscrew the bolts.

2. Remove the inner panel (2a) by releasing the inner retainers (2b) using the special tool.



Tool



Name



Function



Validity


1823015000



Knife



Retainer removal




Enlarge the image

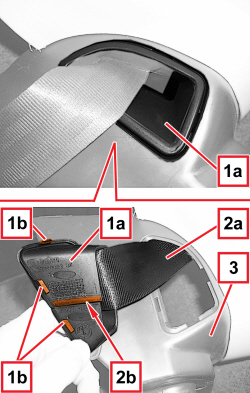

1. Remove the badge (1a) from the side trim by releasing the inner retainers (1b).

2. Remove the badge (2a) by releasing it from the seat belt (2b) via the slit (2c).

3. Keep the rear side trim.

Enlarge the image


 Refitting ( Removing )

- Check that the rear side trim is not damaged.

- Connect the panel to the seat belt via the slit.

- Fit the panel, doing up the inner retainers.

- Position the side trim and engage the inner retainers.

- Screw in the bolts.

- Raise the rear seat backrest.

   Op. 7040H80 REAR PARCEL SHELF - R.R.

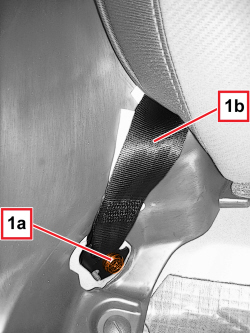

1. Position the end of the rear side seat belt (1a) and screw in the bolt (1b), then tighten it to the recommended torque.
