Removing
(
Refitting
)
- Lift up the rear seat cushion.

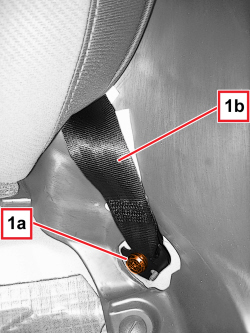

1. Undo the bolt (1a) securing the end of the side rear seat belt (1b).
|
|
Removing
(
Refitting
)
- Lift up the rear seat cushion. 1. Undo the bolt (1a) securing the end of the side rear seat belt (1b). |
  |
|
|

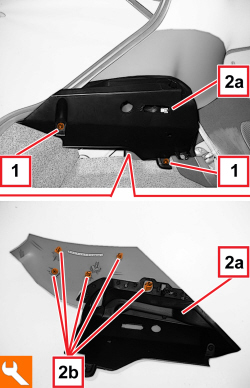

1. Unscrew the bolts. 2. Remove the inner panel (2a) by releasing the inner retainers (2b) using the special tool.
|
  |

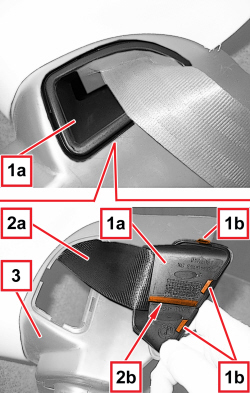

1. Remove the badge (1a) from the side trim by releasing the inner retainers (1b). 2. Remove the badge (2a) by releasing it from the seat belt (2b) via the slit (2c). 3. Keep the rear side trim. |
  |
Refitting
(
Removing
)
- Check that the rear side trim is not damaged. - Connect the panel to the seat belt via the slit. - Fit the panel, doing up the inner retainers. - Position the side trim and engage the inner retainers. - Screw in the bolts. |
|
|

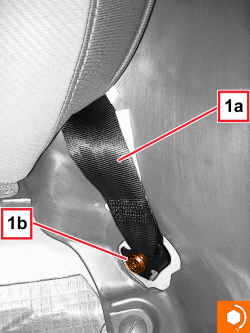

1. Position the end of the rear side seat belt (1a) and screw in the bolt (1b), then tighten it to the recommended torque.
|
