Refitting

- Open the tailgate.

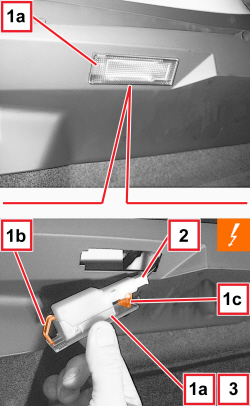

1. Prise up the bulb holder (1a), releasing the retainers (1b) and (1c).

2. Detach the electrical connection.

3. Keep the bulb holder.

1. If the bulb needs to be replaced, release retainers (1a) and lift up protection (1b).

2. Extract the bulb from the bulb holder (press fit).

Removing

- Check that the bulb holder and the bulb are not damaged.

- If removed, fit the bulb in place, then close the protection.

- Connect the electrical connection.

- Fit the bulb holder and engage the retainers.

- Check that the bulb holder is working.

- Close the tailgate.
