Removing
(
Refitting
)
Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.
|
|
Removing
(
Refitting
)
Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R. |
|
Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
- Or, alternatively Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
|
  |

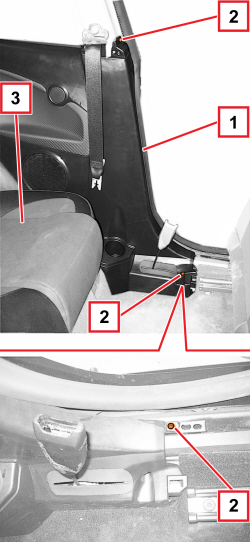

1. Release the door housing seal in the area of the side panel. 2. Unscrew the bolts. 3. Lift up the rear seat cushion. |
  |

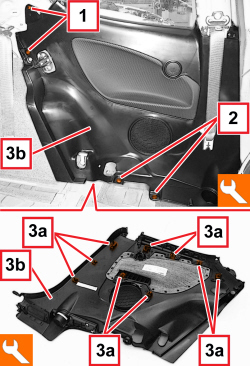

1. Unscrew the bolts. 2. Release the retaining studs using the special tool.
3. Release the inner retainers (3a) using the special tool and remove the side panel (3b).
|
|
|
Refitting
(
Removing
)
- Check that the side panel is not damaged. - Position the side panel and attach the inner retainers. - Tighten the side panel retaining bolts. - Attach the side panel retaining buttons. - Fit the door housing seal. |
|
Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
|
Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R. |
|
