Refitting

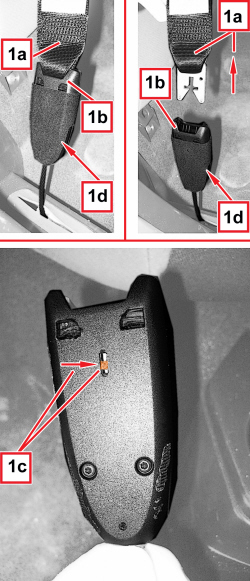

1. Disconnect the seat belt terminal (1a) from the flexible tie-rod (1b) by pressing the retainer (1c) under the trim (1d) with a small screwdriver. Press the trim (1d) in the area with your finger to locate the retainer (1c).

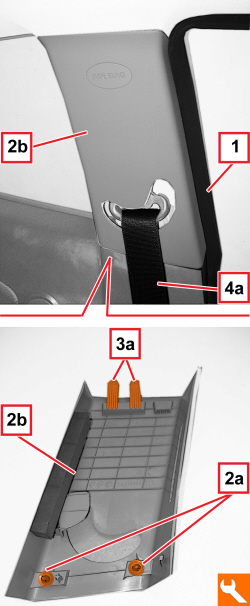

1. Release the door housing seal in the area of the upper pillar cover.

2. Release lower internal retainers (2a) for trim (2b) using the special tool.

3. Release the upper internal retainers (3a) and detach the trim (2b).

4. Keep the upper pillar cover (2b), releasing it from the seat belt (4a).

Removing

- Check that the upper pillar cover is not damaged.

- Position the cover engaging it to the seat belt.

- Engage the upper internal retailers and then the lower internal retainers of the trim.

- Fit the door housing seal.

1. Insert the seat belt terminal (1a) in the flexible tie-rod (1b) until it automatically snaps.
