Refitting

- Open the door.

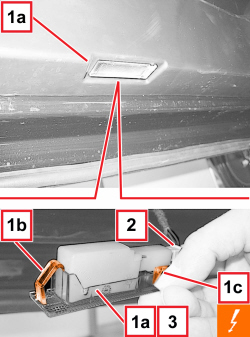

1. Release the courtesy light (1a) releasing the retainers (1b) and (1c).

2. Detach the electrical connection.

3. Keep the courtesy light.

1. If the bulb needs to be replaced, release the side retainers (1a) and lift up protection (1b).

2. Extract the bulb from the bulb holder (press fit).

Removing

- Check that the courtesy light and the bulb are not damaged.

- If removed, fit the bulb in place, then close the cover and attach the side retainers.

- Connect the electrical connection.

- Fit the courtesy light and attach the retainers.

- Check that the light is working.
