Refitting

- Open the tailgate.

- Remove the luggage compartment load platform trim.

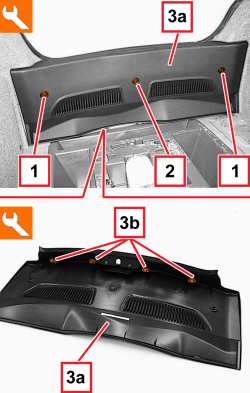

1. Prise up the tailgate housing seal in the area of the trim.

2. Unscrew the bolt.

1. Unscrew the bolts.

2. Release the retaining stud using the special tool.

3. Remove the moulding (3a) releasing the inner retainers (3b) using the special tool.

Removing

- Check that the moulding is not damaged.

- Position the moulding and attach the inner retainers.

- Engage the retaining stud.

- Screw in the bolts.

- Fit the tailgate housing seal.

- Position the luggage compartment load platform trim.

- Close the tailgate.
