- Open the bonnet.

1. If necessary, adjust the buffers.

2. If necessary, adjust the position of the lock.

    Op. 7025A34 BONNET LID LOCK (ONE) - R+R OR REPAIR

- If necessary, adjust the bonnet lid position as described below.

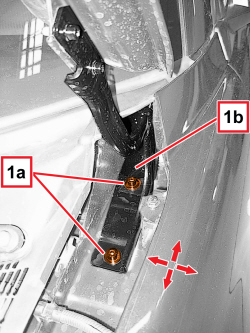

1. Working from both sides of the vehicle, loosen bolts (1a) securing the bonnet lid to hinges (1b) and adjust the lid position using the slotted holes in the hinges.

The arrows indicate the possible movements.

- After adjustment, tighten the bolts to the specified torque.

- If the operation was not sufficient, proceed as follows:

1. Working from both sides of the vehicle, loosen the bolts (1a) attaching the hinges (1b) to the body and adjust the lid position using the slotted holes in the hinges.

The arrows indicate the possible movements.

- After adjustment, tighten the bolts to the specified torque.

- After the adjustment, if necessary, adjust the position of the lock.

    Op. 7025A34 BONNET LID LOCK (ONE) - R+R OR REPAIR
