145 - MiTo   1.4 16v TJet   CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R.   7005E12

Detail     Detail

Enlarge the image


 Removing ( Refitting )

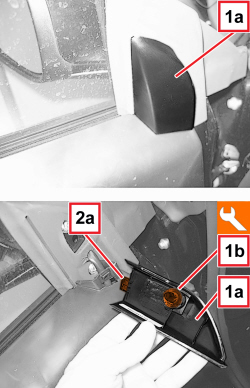

1. Release the corner cover (1a) releasing the inner retainer (1b) using the special tool.



Tool



Name



Function



Validity



1823015000



Knife



Retainer removal



2. Recover the corner cover (1a) releasing the retainer (2a).
Refitting ( Removing )

- Check that the corner cover and inner retainers are not damaged.

- Fit the corner cover engaging the inner retainers.
