Refitting

   Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.

1. Working in the interior handle area, release the trim cover (1a) releasing the inner retainers (1b).

2. Undo the panel retaining bolt

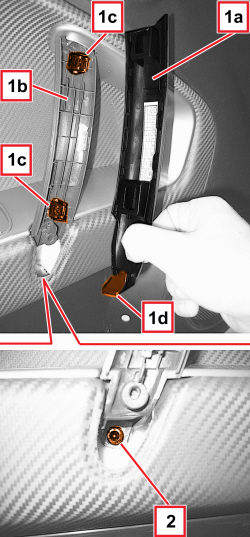

1. Remove the cover (1a) for the grab handle (1b) releasing the inner retainers (1c) and the retainer (1d).

2. Undo the panel retaining bolt

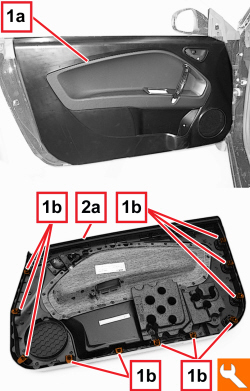

1. Move the panel (1a) slightly releasing the inner retainers (1b) using the special tool.

2. Lift up the panel (1a) slightly and release the inner glass scraper (2a) from the door frame.

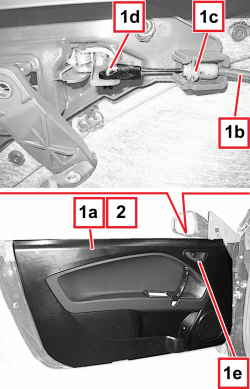

1. Slightly raise the door panel (1a) and release the link (1b) from the retainer (1c), then from the retainer (1d) for the interior door handle (1e).

2. Keep the inner panel.

Removing

- Check that the inner panel is not damaged.

- Attach the rod to the interior door handle retainers.

- Place the panel in position and attach the inner glass scraper to the door frame, then attach the inner retainers.

- Tighten the panel retaining bolts.

- Position the grab handle cover and engage the retainers.

- Fit the trim cover in place attaching the inner retainers.

   Op. 7005E12 CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R.
