Refitting

- Open the door.

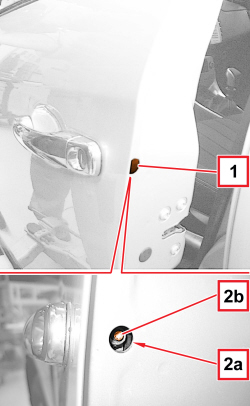

1. Release the rubber cover.

2. Working via the opening (2a), loosen the inner bolt (2b) until it is in the end of travel position.

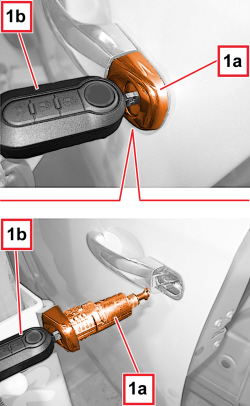

1. Release the lock barrel assembly (1a) with the help of the key (1b) inserted. Turn the key clockwise to facilitate the extraction of the lock barrel.

- If necessary, extract the barrel from the assembly following the instructions below.

1. Release the upper and lower ends (1a) and remove the trim (1b).

1. Release the end (1a) of the retaining clip (1b), then extract it keeping the retainer (1c) pressed.

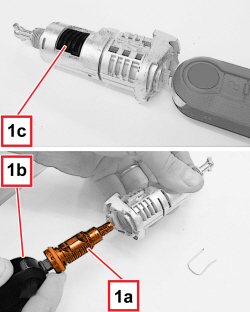

1. Extract the lock barrel (1a) using the spanner (1b) keeping the retainer (1c) pressed.

2. Release the retainer (1c) carefully.

Removing

- Check that the lock barrel for the key is not damaged.

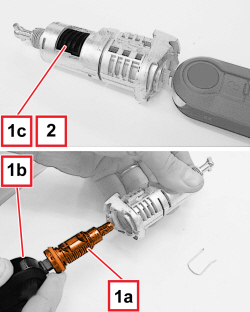

1. If removed, fit the lock barrel (1a) in place with the key (1b) keeping the retainer (1c) pressed.

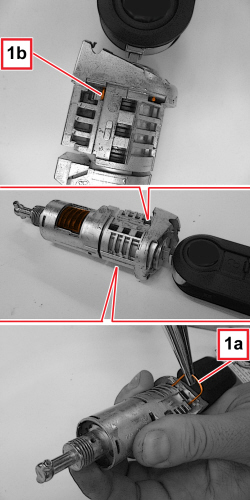

1. Fit the retaining clip (1a), then attach the end (1b).

1. Fit the trim (1a) in place and attach the upper and lower ends (1b).

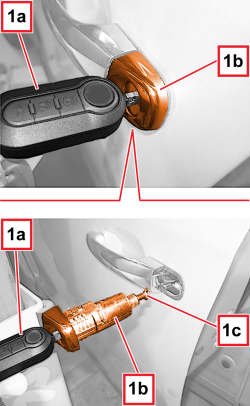

1. Using the key (1a), fit the lock barrel (1b), attaching the ends (1c) in the seat.

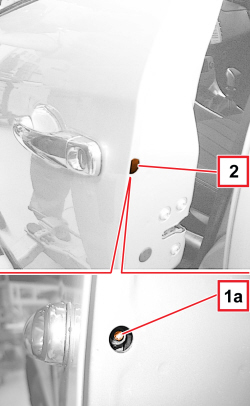

1. Tighten the lock barrel retaining bolt (1a).

2. Fit the rubber cover.

- Check that the lock barrel is working.
