Refitting

   Op. 5570T91 FRONT SIDE SPEAKER (ONE), LEFT OR RIGHT - R.R. WITH DOOR PANEL REMOVED

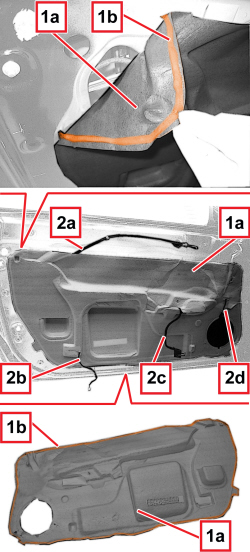

1. Lift up the water guard (1a), detaching the adhesive bead (1b) along the entire perimeter.

2. Remove the water guard (1a), releasing it from the rod (2a) and from the electrical cables (2b), (2c) and (2d).

Removing

Always replace the water guard even if it is intact. The adhesive will not guarantee the necessary seal once it has been detached from the panel.

- Connect the new water guard to the electrical cables and to the rod.

- Position the new water guard, ensuring that the adhesive bead adheres perfectly.

Check that the water guard adheres perfectly along the entire perimeter.

   Op. 5570T91 FRONT SIDE SPEAKER (ONE), LEFT OR RIGHT - R.R. WITH DOOR PANEL REMOVED
