Refitting

- Position the vehicle on a lift.

- Raise the vehicle.

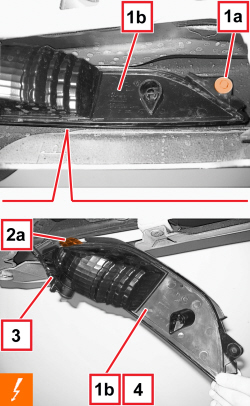

1. Working behind the right rear wheel, loosen the fastening screws (1a) of the reversing light (1b).

2. Move the reversing light and release the retainer (2a) from its seat.

3. Detach the electrical connection.

4. Recover the reversing light.

Removing

- Check that the reversing light is not damaged.

- Connect the electrical connection.

- Position the rear reversing lamp and attach the retainer in the seat.

- Tighten the light retaining bolt.

- Remove the vehicle from the lift.

- Check that the reversing light is working.
