145 - MiTo   1.4 16v TJet   LH OR RH FOG LIGHT SUPPORT (ONE) - R.R.   5540D20

Detail     Detail
Removing ( Refitting )

   Op. 7055B56 RIGHT SIDE UNDER-ENGINE PROTECTION/GUARD

   Op. 7055B55 LEFT SIDE UNDER ENGINE PROTECTION GUARD RR

   Op. 7210E10 R.R. FRONT BUMPER

   Op. 5540D10 L/H OR R/H FOG LIGHT (ONE) - R+R


Enlarge the image

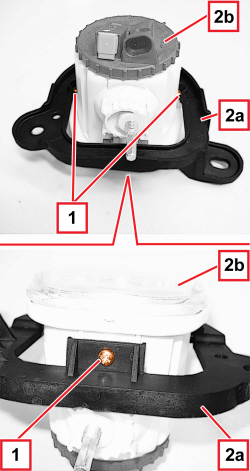

1. Unscrew the bolts.

2. Separate the support (2a) from the fog light (2b).
Refitting ( Removing )

- Check that the fog lamp support is not damaged.

- Position the support on the fog light.

- Screw in the bolts.

   Op. 5540D10 L/H OR R/H FOG LIGHT (ONE) - R+R

   Op. 7210E10 R.R. FRONT BUMPER

   Op. 7055B55 LEFT SIDE UNDER ENGINE PROTECTION GUARD RR

   Op. 7055B56 RIGHT SIDE UNDER-ENGINE PROTECTION/GUARD

APPLIES TO VERSIONS WITH:

Removing ( Refitting )

   Op. 5540D15 FOG LIGHT TRIM (ONE), LEFT OR RIGHT - R.R.

   Op. 5540D10 L/H OR R/H FOG LIGHT (ONE) - R+R

APPLIES TO VERSIONS WITH:


Enlarge the image

APPLIES TO VERSIONS WITH:


Enlarge the image


 Refitting ( Removing )

APPLIES TO VERSIONS WITH:

    Op. 5540D10 L/H OR R/H FOG LIGHT (ONE) - R+R

    Op. 5540D15 FOG LIGHT TRIM (ONE), LEFT OR RIGHT - R.R.
