145 - MiTo   1.4 16v TJet   L/H OR R/H FOG LIGHT (ONE) - R+R   5540D10

Detail     Detail
Removing ( Refitting )

   Op. 7055B56 RIGHT SIDE UNDER-ENGINE PROTECTION/GUARD

   Op. 7055B55 LEFT SIDE UNDER ENGINE PROTECTION GUARD RR

   Op. 7210E10 R.R. FRONT BUMPER


Enlarge the image

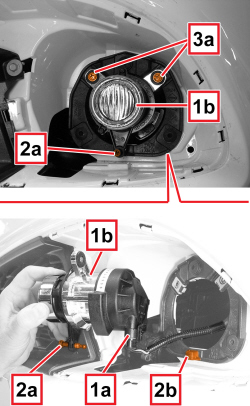

1. Undo the bolts fixing the fog light.

2. Remove the fog light and support.

- If necessary, remove the support.

    Op. 5540D20 LH OR RH FOG LIGHT SUPPORT (ONE) - R.R.

- Keep the fog lamp.
Refitting ( Removing )

- Check that the fog light is not damaged.

   Op. 5540D20 LH OR RH FOG LIGHT SUPPORT (ONE) - R.R.

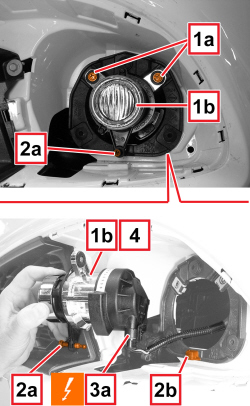

- Position the fog light and support.

- Screw in the bolts.

   Op. 7210E10 R.R. FRONT BUMPER

   Op. 5540D38 LIGHT BEAM FOR FOG LIGHTS - DIRECTION

APPLIES TO VERSIONS WITH:

Removing ( Refitting )

   Op. 5540D15 FOG LIGHT TRIM (ONE), LEFT OR RIGHT - R.R.

APPLIES TO VERSIONS WITH:


Enlarge the image













   See F015 LEFT FOG LAMP




   See F016 RIGHT FOG LAMP

APPLIES TO VERSIONS WITH:


Enlarge the image


 Refitting ( Removing )

APPLIES TO VERSIONS WITH:

    Op. 5540D15 FOG LIGHT TRIM (ONE), LEFT OR RIGHT - R.R.

    Op. 5540D38 LIGHT BEAM FOR FOG LIGHTS - DIRECTION
