Removing
(
Refitting
)
- Open the bonnet.

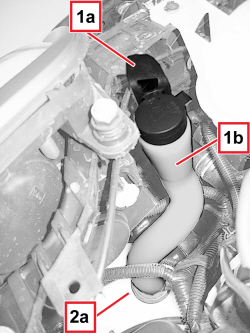

1. Disconnect the upper retainer (1a) from the introduction pipe (1b).
2. Remove the introduction pipe (1b) by releasing it from the windscreen reservoir inlet (2a).
|
|
Removing
(
Refitting
)
- Open the bonnet. 1. Disconnect the upper retainer (1a) from the introduction pipe (1b). 2. Remove the introduction pipe (1b) by releasing it from the windscreen reservoir inlet (2a). |
|
|
Refitting
(
Removing
)
- Check that the filler pipe is not damaged. - Position the filler pipe and attach it to the screen washer reservoir inlet and the retainer. - Connect the upper retainer of the pipe. - Close the bonnet. |
