145 - MiTo   1.4 16v TJet   FAN MOTOR ELECTRONIC VARIATOR - R+R   5040C44

Detail     Detail
Removing ( Refitting )

- Remove the right guard.

   Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.


Enlarge the image

1. Working under the right side of the dashboard, disconnect the electrical connection.





Description



Connector


1



FAN SPEED VARIATOR



   See M072 FAN SPEED VARIATOR

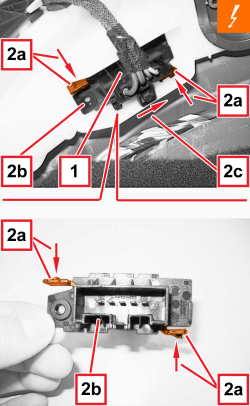

2. Move the tabs (2a) of the electronic variator in the direction of the arrows to release them from the retainers (2b), then move the variator (2c) in the direction of the arrow (2d) and remove it.
Refitting ( Removing )

- Check that the electronic variator is not damaged and, if necessary, conduct an electrical test.

- Fit the electronic variator and attach the retainers.

- Connect the electrical connection.

   Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image


 Removing ( Refitting )

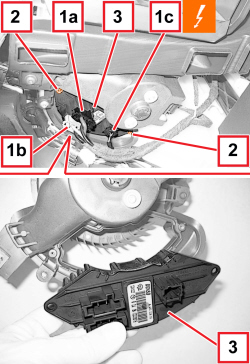

1. Working under the left side of the dashboard, disconnect the electrical connections (1a, 1b, 1c).





Description



Connector



1



FAN SPEED VARIATOR



   See M072 FAN SPEED VARIATOR

2. Unscrew the bolts.

3. Remove the electronic variator.

APPLIES TO VERSIONS WITH: Right-hand drive

Refitting ( Removing )

- Check that the electronic variator is not damaged and, if necessary, conduct an electrical test.

- Fit the electronic variator.

- Screw in the bolts.

- Connect the electrical connections.
