Refitting

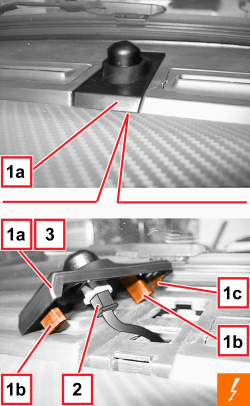

1. Lift the badge and sensor (1a) by releasing the retainers (1b) and then the retainer (1c).

2. Detach the electrical connection.

3. Recover the badge with sensor.

1. If necessary, release the retainers (1a) and separate the sensor (1b) from the badge seat (1c).

Removing

- Check that the sensor is not damaged.

- If removed, insert the sensor in the badge seat and engage the retainers.

- Connect the electrical connection.

- Position the trim with sensor and attach the retainers.
