145 - MiTo   1.4 16v TJet   CLIMATE CONTROL OUTSIDE AIR PURIFYING (POLLEN) FILTER - R.R.   5010B08

Detail     Detail
Removing ( Refitting )

   Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

- Remove the right side closure.

   Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.


Enlarge the image

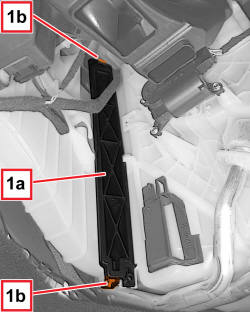

1. Remove the filter cover (1a) releasing the end retainers (1b).

Enlarge the image

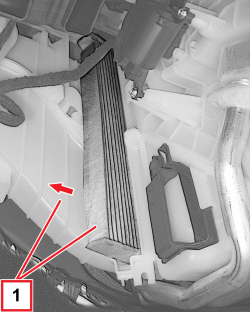

1. Extract the filter element.

Enlarge the image


 Refitting ( Removing )

- Check that the filter element is not damaged or blocked.

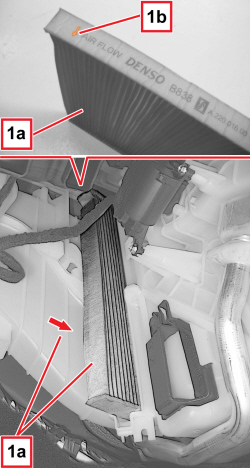

1. Insert the filter element (1a).

The reference arrow (1b) (AIR FLOW) should be positioned as illustrated (in the direction of the air flow).

- Position the filter cover in its seat and engage the end retainers.

    Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

    Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

APPLIES TO VERSIONS WITH: Right-hand drive

Removing ( Refitting )

- Remove the left side closure.

   Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

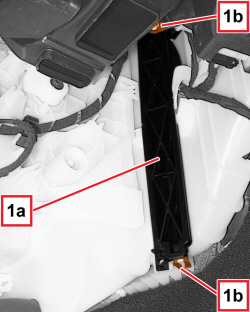

1. Remove the filter cover (1a) releasing the end retainers (1b).

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

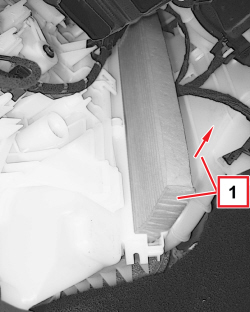

1. Extract the filter element.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image


 Refitting ( Removing )

- Check that the filter element is not damaged or blocked.

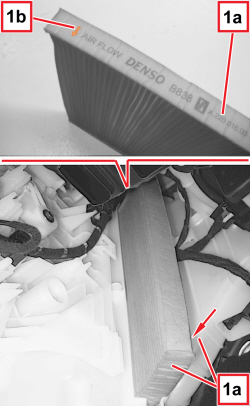

1. Insert the filter element (1a).

The reference arrow (1b) (AIR FLOW) should be positioned as illustrated (in the direction of the air flow).

APPLIES TO VERSIONS WITH: Right-hand drive

- Position the filter cover in its seat and engage the end retainers.

    Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.
